Polysure CPVC Pipes & Fittings are the perfect solution for hot and cold water distribution requirements in residential, commercial and industrial projects. Produced from a unique blend of chlorinated polyvinyl chloride (CPVC), they possess the perfect physical properties desirable for hassle free piping applications.

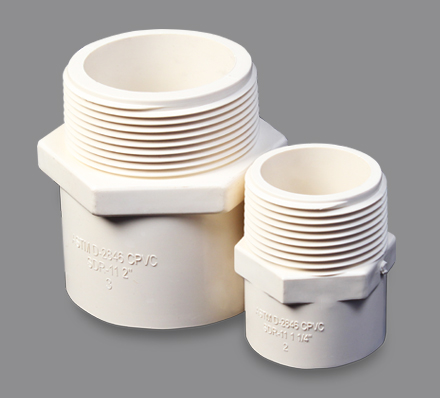

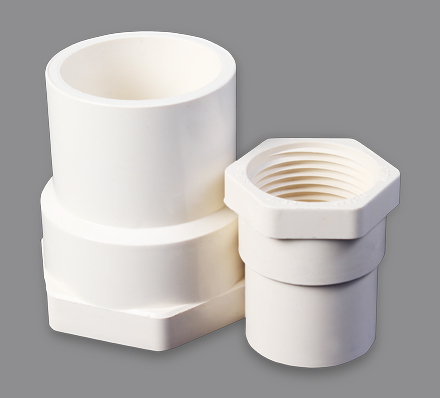

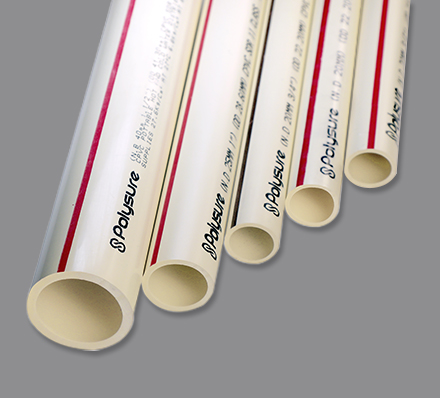

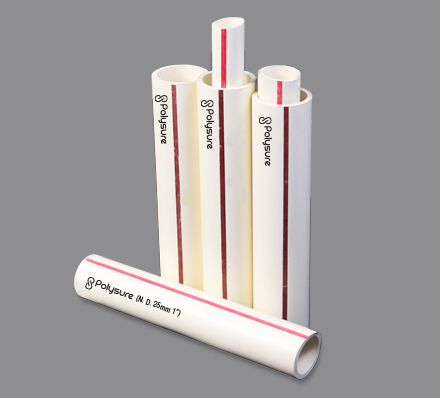

Polysure produces CPVC plumbing pipes in ‘Copper Tube Size’ and available sizes range from 15 mm (1/2”) to 50 mm (2”) conforming to the norms of ASTM D 2846 & IS:15778 meant for SDR 11 & 13.5. Fittings meet the requirements of ASTM D 2846 in Copper tube sizing.

Polysure also produces CPVC pipes in ‘Iron Pipe Size’ (IPS) from 65 mm (2.1/2") to 150 mm (6") which meet the requirement of SCH - 40 and SCH - 80 of ASTM F 441 and fittings manufactured as per ASTM F 439 in ‘Iron Pipe Size’ (IPS).

The pipes are plain ended and available in standard lengths of 3 metres and 5 metres with various pressure ratings as well as temperatures.

Although the pipes have similar physical properties, the classes differ in wall thicknesses and therefore at any given temperature their pressure ratings will differ.

CPVC Pipes & Fittings in Ahmedabad

Salient Features and Benefits
  • Suitable for hot water up to 930C
  • High impact strength and durability
  • UV stabilized and life span of more than 50 years
  • Light weight and easy to install Safe for water system
  • No corrosion thus uncompromised water quality
  • Excellent resistance to chemicals
  • Smooth internal surface
  • Fire-resistant and self-extinguishing
  • Energy saving and 100% leak-proof
  • No scaling
  • Lowest bacterial growth
  • Unaffected by chlorine in water

Applications

Polysure CPVC Pipes & Fittings are suitable for hot & cold water distribution systems for indoor and outdoor applications up to 930C. This system is widely used with solar & electric water heaters in the following:
  • Individual Homes, Residential Apartments, High and Low Rise Buildings
  • Hotels, Swimming Pools and Resorts
  • Corporate & Commercial Houses, Hospitals and Academic Institutes
  • Solar Heating, Central Heating and Radiant Floor Heating Applications
  • Manufacturing Plants, Carrying Water and Edible Fluids
  • Transportation of Chemicals and Other Hot, Corrosive Fluids

Technical Specification

Swipe to left or right to see the full table

Dimensional Details and Pressure Ratings of SDR 11 for CPVC Pipes as per IS: 15778 & ASTM D 2846

Nominal Size Outside Diameter (mm) Wall Thickness (mm) Pressure at 270C Pressure at 820C
inch mm Average Tolerance mm Tolerance (kg/cm2sup>) (MPA) (kg/cm2) (MPA)
1/2 15 15.90 +/-0.1 1.95 +/-0.25 27.6 2.76 6.8 0.68
3/4 20 22.20 +/-0.1 2.25 +/-0.25 27.6 2.76 6.8 0.68
1 25 28.60 +/-0.1 2.85 +/-0.25 27.6 2.76 6.8 0.68
1.1/4 32 34.90 +/-0.1 3.45 +/-0.25 27.6 2.76 6.8 0.68
1.1/2 40 41.30 +/-0.1 4.05 +/-0.25 27.6 2.76 6.8 0.68
2 50 54.00 +/-0.1 5.20 +/-0.25 27.6 2.76 6.8 0.68

Swipe to left or right to see the full table

Dimensional Details and Pressure Ratings of SDR 13.5 for CPVC Pipes as per IS: 15778 & ASTM D 2846

Nominal Size Outside Diameter (mm) Wall Thickness (mm) Pressure at 270C Pressure at 820C
inch mm Average Tolerance mm Tolerance (kg/cm2) (MPA) (kg/cm2) (MPA)
1/2 15 15.90 +/-0.1 1.65 +/-0.25 21.8 2.18 5.5 0.55
3/4 20 22.20 +/-0.1 1.95 +/-0.25 21.8 2.18 5.5 0.55
1 25 28.60 +/-0.1 2.35 +/-0.25 21.8 2.18 5.5 0.55
1.1/4 32 34.90 +/-0.1 2.85 +/-0.25 21.8 2.18 5.5 0.55
1.1/2 40 41.30 +/-0.1 3.85 +/-0.25 21.8 2.18 5.5 0.55
2 50 54.00 +/-0.1 4.25 +/-0.25 21.8 2.18 5.5 0.55

Swipe to left or right to see the full table

Dimensional Details and Pressure Ratings of SCH 40 for CPVC 4120 Pipes as per ASTM F 441

Nominal Size Outside Diameter (mm) Wall Thickness (mm) Pressure at 230C Pressure at 820C
inch mm Average Tolerance mm Tolerance PSI (kg/cm2) PSI (kg/cm2)
2.1/2 65.00 73.0 +/-0.18 5.16 +0.61 300 (20.00) 75 (5.17)
3 80 88.90 +/-0.20 5.49 +0.66 260 (17.90) 65 (4.48)
4 100 114.30 +/-0.23 6.02 +0.71 220 (15.20) 55 (3.79)
6 150 168.30 +/-0.28 7.11 +0.86 180 (12.40) 45 (3.10)

Swipe to left or right to see the full table

Dimensional Details and Pressure Ratings of SCH 80 for CPVC 4120 Pipes as per ASTM F 441

Nominal Size Outside Diameter (mm) Wall Thickness (mm) Pressure at 270C Pressure at 820C
inch mm Average Tolerance mm Tolerance PSI (kg/cm2) PSI (kg/cm2)
2.1/2 65 73.0 +/-0.18 7.01 +0.84 420 (29.00) 105 (7.24)
3 80 88.9 +/-0.20 7.62 +0.91 370 (25.50) 90 (6.20)
4 100 114.3 +/-0.23 8.56 +1.02 320 (22.10) 80 (5.51)
6 150 168.30 +/-0.28 10.97 +1.32 280 (12.40) 70 (4.80)
